Calm: Projects

Overview

Note

Review Calm Basics before proceeding with the lab to familiarize yourself with the UI and common terminology used in Nutanix Calm.

Estimated time to complete: 170 MINUTES

In this exercise you will configure a Project to contain your Blueprints and Applications created throughout the Workshop.

Creating A Project

Projects are the logical construct that integrate Calm with Nutanix’s native Self-Service Portal (SSP) capabilities, allowing an administrator to assign both infrastructure resources and the roles/permissions of Active Directory users/groups to specific Blueprints and Applications.

Click + Create Project

Select proj-icon Projects from the sidebar.

../_images/581enable8.png

Fill out the following fields:

  • Project Name - Calm-initials
  • Description - Calm-initials

Under Users, Groups, and Roles, click + User.

Fill out the following fields and click Save:

  • Name - SSP Admins
  • Role - Project Admin

Click + User, fill out the following fields and click Save:

  • Name - SSP Developers
  • Role - Developer

Click + User, fill out the following fields and click Save:

  • Name - SSP Power Users
  • Role - Consumer

Click + User, fill out the following fields and click Save:

  • Name - SSP Basic Users
  • Role - Operator

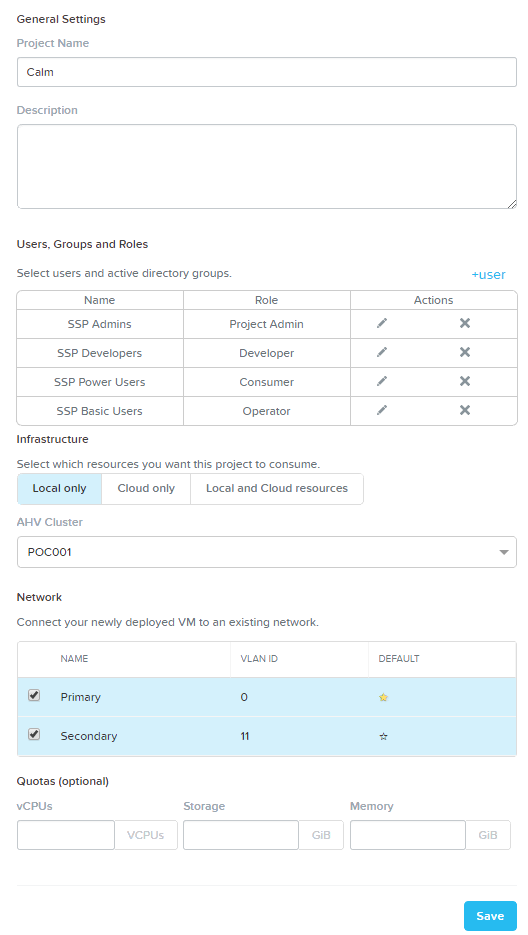

Under Infrastructure, fill out the following fields: - Select which resources you want this project to consume - Local only - AHV Cluster - <Cluster Name>

Under Network, select the Primary and if available, the Secondary networks. Select for the Primary network to make it the default virtual network for VMs in the Calm project.

Click Save.

../_images/enable7.png

Note

Click here to view the complete matrix of default SSP roles and associated permissions.

Takeaways

  • Nutanix Calm is a fully integrated component of the Nutanix stack. Easily enabled, highly available out of the box in a Scale Out Prism Central deployment, and takes advantage of non-disruptive One Click upgrades for new features and fixes.
  • By using different projects assigned to different clusters and users, administrators can ensure that workloads are deployed the right way each time. For example, a developer can be a Project Admin for a dev/test project, so they have full control to deploy to their development clusters or to a cloud, while having Read Only access to production projects, allowing them access to logs but no ability to alter production workloads.
